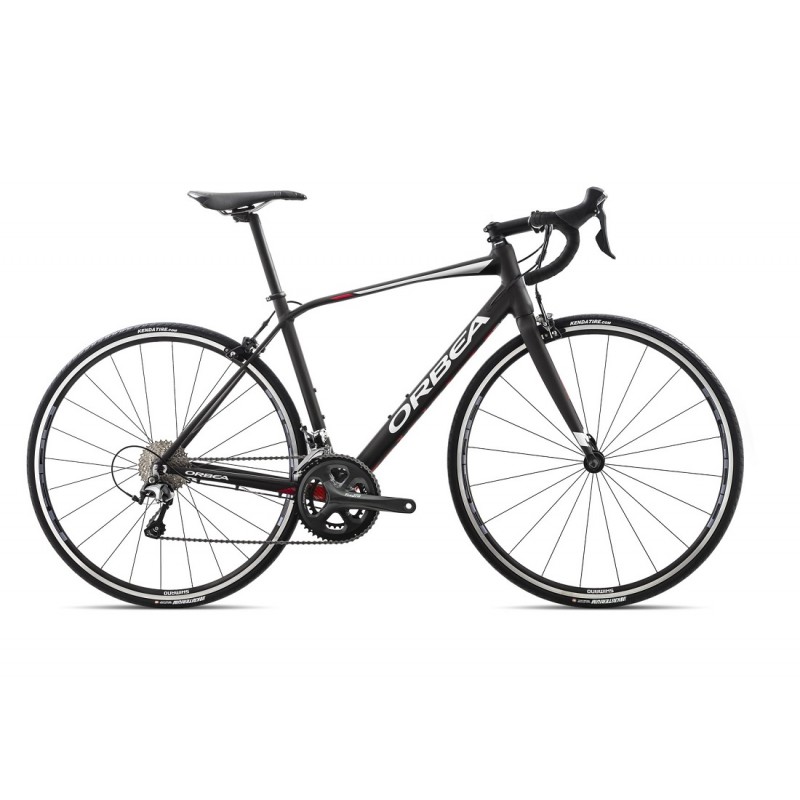

Orbea Avant H40 Road Bike 2018 Red Black White

About Orbea Avant H40 Road Bike 2018 Red Black White

Rapid road riding that won’t break the bank. The Orbea Avant H40 is a sportive bike that’s perfect for commuting and training, giving you a lightweight alloy frame and comfortable geometry. The Shimano Tiagra 10 speed drivetrain has super smooth shifting, and a wide range of easy gearing thanks to the compact chainset and 11-32t cassette.

Key Features:

  • Hydroformed and triple butted aluminium frame is lightweight, yet strong
  • Fork has carbon blades and alloy steerer for balanced weight and strength
  • Shimano Tiagra 2x10 speed drivetrain has smooth shifting
  • Compact 34/50t chainset and 11-32t cassette makes climbing easy
  • Shimano R-501 wheels are quick-rolling
  • Sizes: 47cm, 49cm, 51cm, 53cm, 55cm, 57cm, 60cm
  • Colours: Black/Anthracite/Green, White/Black/Blue, Black/Red/White, Blue/Green, Black/Pink/Jade
  • The Orbea Avant H40 is available with 0% APR finance

You knew when you planned the ride it would be a long day - a route stacked with grinding climbs and twisting descents, terrible roads with a good amount of who-knows-what-else thrown in. These rides aren’t most people’s idea of fun, but they sure are memorable, monumental, challenging. Is that why you keep going? You suck down another coffee and pull on your shoe covers to hold the weather at bay, it’s going to clear out and warm up in a few hours... Probably. Grab your Avant and do a quick check before rolling into the morning mist. No other machine could better help you endure the hours of rough, exhausting conditions ahead. It’s going to be a long day - and you love it.

Dynamic Structure Comfort - Structure, tubing shapes and frame design are elemental to building a comfortable frame that helps reduce muscle fatigue. Avant's Dynamic Structure provides a smooth, light ride without bulky compromises like tubing inserts and elastomers. The natural flex patterns created by the carbon layup and minimal bulk of the top tube and seat stays deliver a dynamic, smooth ride that feels like floating over rough roads. The sensation is subtle - but it is noticeable and can be tested.

Efficiency - The large majority of torsional and lateral loads are handled by the lower spine of the frame. The headtube, downtube and chainstays are shaped to resist twisting and transmit power to the rear wheel. There is no doubt about it, large cross-sections and resistance to flex in the bottom of the frame translate directly to more watts on the road and a sensation that power transfer is instantaneous.

Avant Fork - The Avant fork uses a shallower, rounded-blade profile and longer fork legs to offer the best combination of elasticity, tire clearance and torsional stiffness. The increased axle-to-crown height is offset by a shorter headtube to maintain stack measurements and improve aesthetics.

Specifications

FrameOrbea Avant Hydro, hydroformed triple butted aluminum, headset 1-1/8"", BB 68mm - BSC English , internal cable routing, 130 OLD, 27,2mm seat tube.
ForkAvant carbon fork, aluminum steerer, 1-1/8"" head tube.
Headset1-1/8"" Semi-Integrated Aluminium Cup
StemOrbea OC-II
BarsOrbea OC-II
Front BrakeOrbea OC-II
Rear BrakeOrbea OC-II
Front MechShimano Tiagra 4700
Rear MechShimano Tiagra 4700 GS
ShiftersShimano Tiagra 4700
Speed20
Rims: Shimano R-501 Clincher
Front HubShimano R-501 Clincher
Rear HubShimano R-501 Clincher
Front TyreKenda Kriterium 700x25 60TPI
Rear TyreKenda Kriterium 700x25 60TPI
Seat PostOrbea OC-II Carbon 27.2x350mm
ChainsetShimano Tiagra 4700 34x50t
ChainKMC X10-1 EPT
CassetteShimano Tiagra HG-500 11-32t 10-Speed
PedalsNot Included



Geometry


BIKE SPECIFICATIONS
FRAMEOrbea Avant Hydro, hydroformed triple butted aluminum, headset 1-1/8", BB 68mm - BSC English , internal cable routing, 130 OLD, 27,2mm seat tube.
FORKAvant carbon fork, aluminum steerer, 1-1/8" head tube.
RIMSShimano R-501 Clincher
HUB REARShimano R-501 Clincher
HUB FRONTShimano R-501 Clincher
TIRESKenda Kriterium 700x25 60TPI
DERAILLEUR REARShimano Tiagra 4700 GS
DERAILLEUR FRONTShimano Tiagra 4700
SHIFT LEVERShimano Tiagra 4700
CRANKSETShimano Tiagra 4700 34x50t
CHAINKMC X10-1 EPT
CASSETTEShimano Tiagra HG-500 11-32t 10-Speed
BRAKES FRONTOrbea OC-II
BRAKES REAROrbea OC-II
HANDLEBAROrbea OC-II
STEMOrbea OC-II
HEADSET1-1/8" Semi-Integrated Aluminium Cup
SEATPOSTOrbea OC-II Carbon 27.2x350mm
PEDALSNot Included
