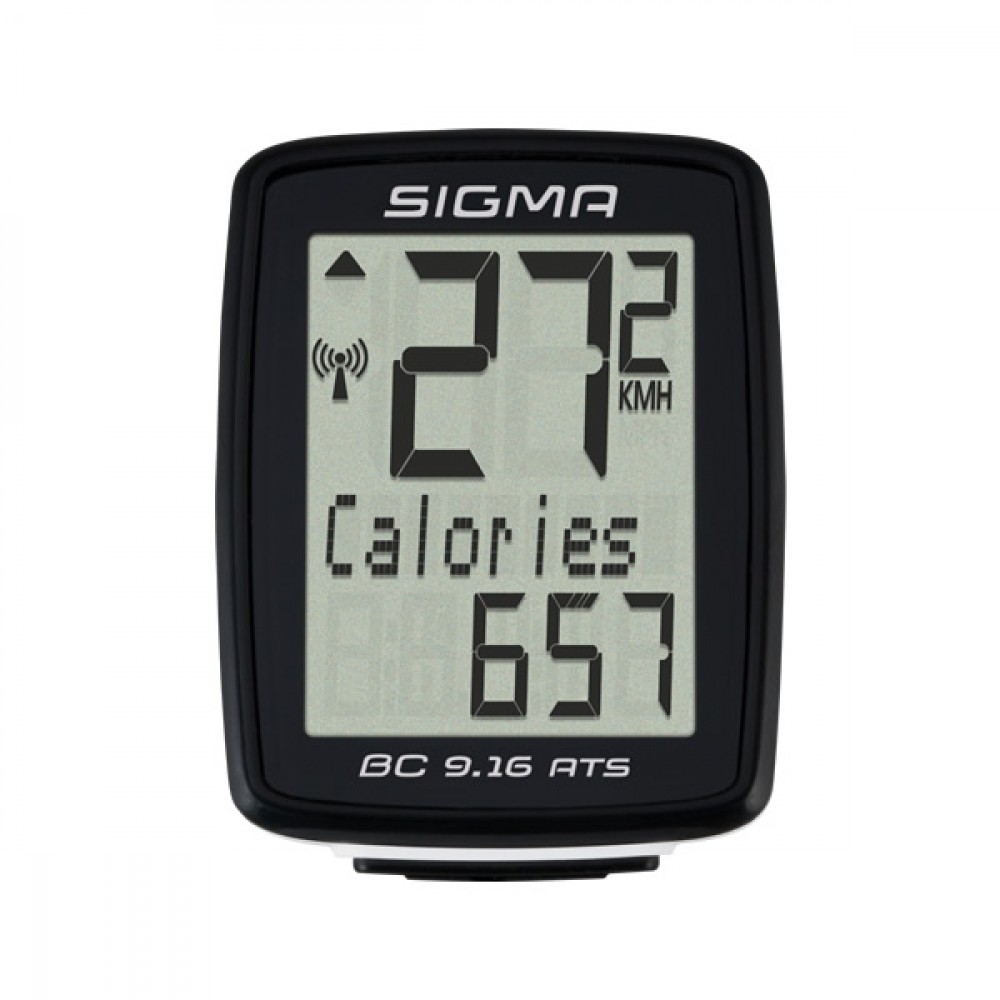

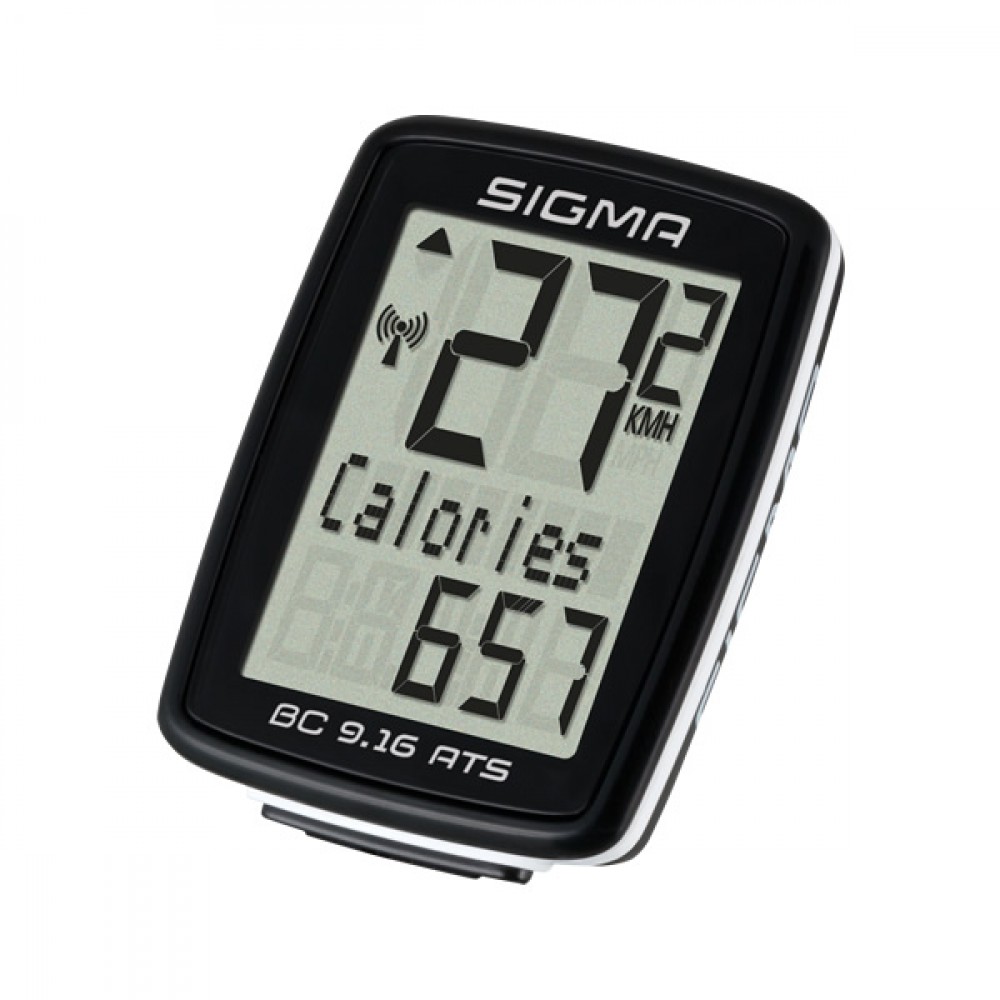

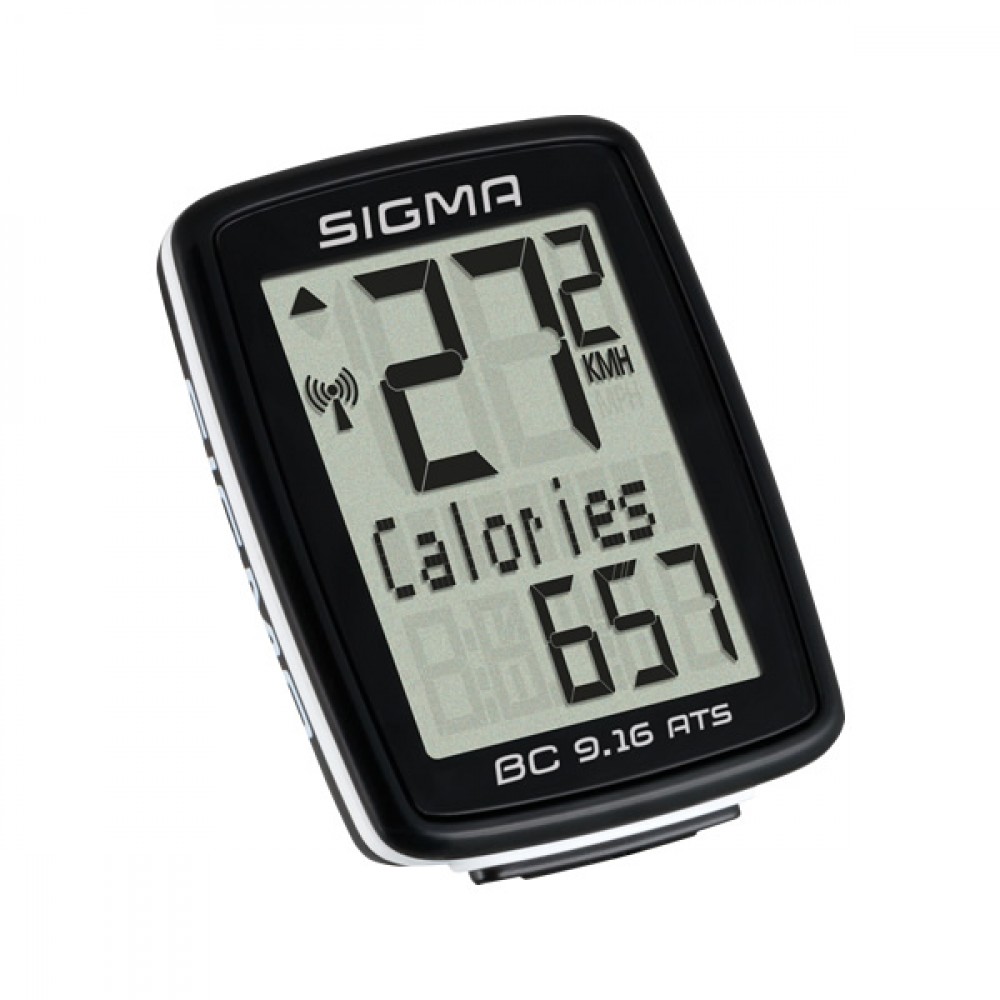

About Sigma Sport BC 9.16 ATS Wireless Bike Computer

The fitness specialist

We all know that riding a bike is one of the best ways to get in shape! The BC 9.16 ATS’s speed based calorie counter will keep track of your progress towards reaching your fitness goals.

Need a Break?

Don’t you hate it when you forget to start your computer after stopping for a snack or a cup of coffee? Yet, at the same time, we you also want batteries to last a long time.

With the new ATS transmission system, when you stop and take a break during a ride for up to two hours, the computer will auto wake without pressing a button.

When you see the antenna icon on the display, that means that the auto wake function is active. If the antenna is not shown, it means that the BC9.16 ATS turned itself off to conserve battery life. Simply press any button to start riding again.

How many calories did you burn?

The BC9.16 ATS estimates the calories burned on each ride based on speed and ride time.

Setting the wheel size

Setting the wheel size is extremely easy using the tire size. From 16 inches to 700C to 29 inches, the wheel size can be set easily using predefined tire sizes. Of course, it is also possible to manually enter the wheel size in millimetres.

Nine functions and more

In addition to the classic bike functions, the BC 9.16 ATS also gives the calorie consumption. Features at a glance:

• Actual speed
• Average speed
• Maximum speed
• Trip Distance
• Total Distance
• Ride time
• Total ride time
• Clock (12/24h)
• Calories
• Total calories

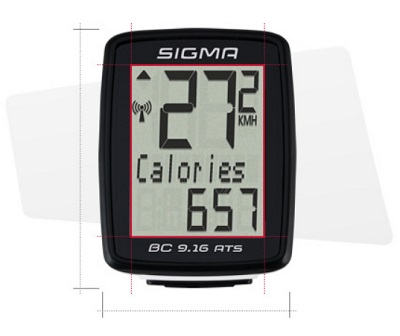

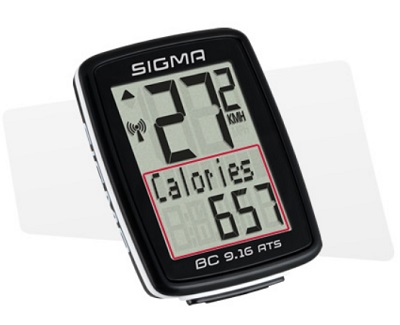

Calories burned

The BC9.16 estimates the calories burned on each ride based on speed and ride time.

Need a Break?

Don’t you hate it when you forget to start your computer after stopping for a snack or a cup of coffee? Yet, at the same time, we you also want batteries to last a long time.

With the new ATS transmission system, when you stop and take a break during a ride for up to two hours, the computer will auto wake without pressing a button.

When you see the antenna icon on the display, that means that the auto wake function is active. If the antenna is not shown, it means that the BC9.16 ATS turned itself off to conserve battery life. Simply press any button to start riding again.

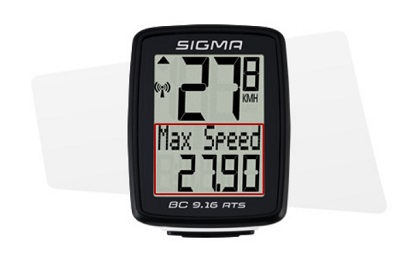

Maximum speed display

On a single screen, the BC9.16 ATS shows the maximum speed, current speed, and current speed compared to average speed.

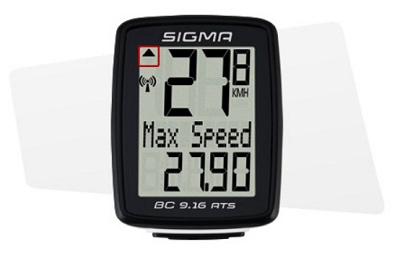

Speed comparison

The BC9.16 ATS continuously compares current and average speed. When there is a difference, the result is indicated by an upward or downward arrow.

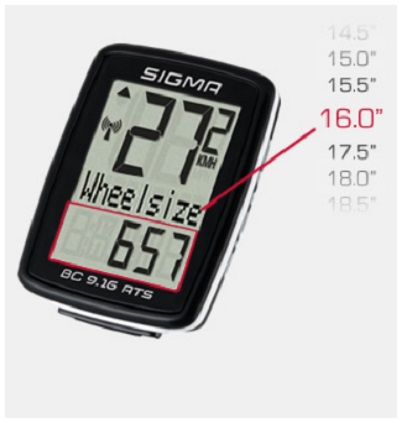

Predefined tire sizes

Setting the wheel size is extremely easy using the tire size. From 16 inches to 700C to 29 inches, the wheel size can be set easily using predefined tire sizes. Of course, it is also possible to manually enter the wheel size in millimetres.

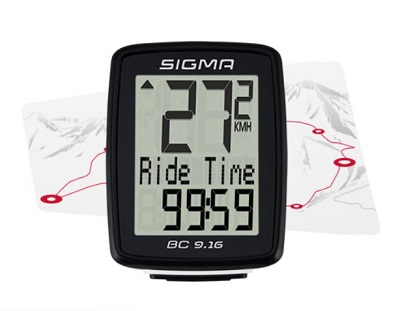

Ride time up to 100 h

With a ride time of up to 100 hours, you can record and save the trips of your complete cycling holiday.

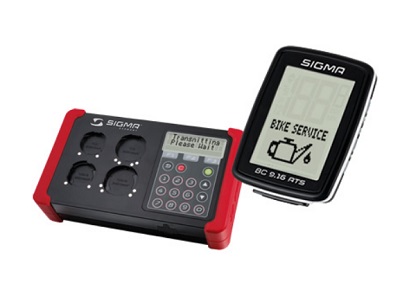

Bike inspection reminder function

Thanks to the service interval, you are reminded to submit your bike to an inspection after a freely selectable number of kilometers cycled. The service interval can only be enabled/disabled and pre-configured by the retailer. The retailer can set the desired number of kilometres using the UNIVERSAL FAST SETTING BOX.

The device comes with the service interval disabled.

Maximum display, minimum size

The new sleek, vertically orientated TOPLINE 2016 computers will look great on your stem or handlebar. We’ve maximized the display size and slimmed down the computer housing to show the largest, easiest to read numbers and letters possible.

Housing

Height x width x depth : 50 mm x 35,5 mm x 10,2 mm

Display

Height x width : 27 mm x 35 mm

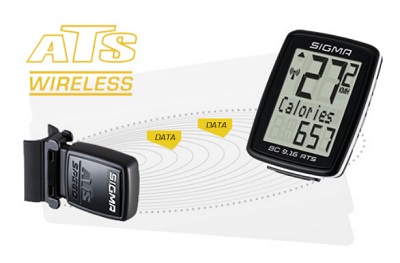

ATS

Analog Transmission System

ATS is SIGMA SPORT’s own, newly developed, analog encoded single‐channel wireless transmission system. The BC 9.16 is one of many wireless bike computer options in the TOPLINE2016 product range.

The wireless transmitter on the fork securely transmits the signal from the magnets to the receiver (computer head) after each wheel rotation. Unlike most computers in its class, the BC9.16 ATS will reject any other wireless signal, preventing “cross talk” when riding close to another cyclist.

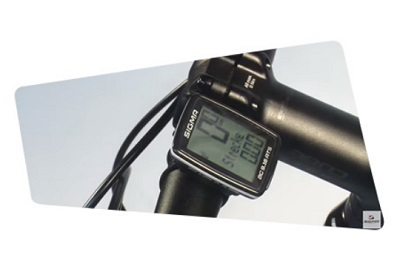

Tool-free mounting

The handlebar/stem bracket and the new ATS‐transmitter can be easily mounted with O‐rings or cable ties.

Data evaluation

All SIGMA TOPLINE 2016 computers are downloadable. An optional USB docking station lets you transfer information from your bicycle computer to your Mac/PC to keep track of your rides.

Watertight in accordance with IPX8

The BC 9.16 ATS is waterproof according to the international standard IPX 8. This means there is ""protection against permanent immersion"". Nothing stands in the way during the next ride in the rain.

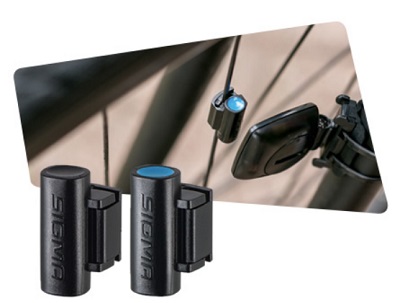

Click-magnets

Both new magnets (normal & power) are equipped with a click-mounting mechanism. This makes installation even easier. Devices can also be removed without tools.

Bike functions

• Day trip
• Ride Time / Training time
• Clock (12/24h)
• Actual
• Total Ride Time / Overall training time
• Total calories*
• Maximum speed
• Total distance
• Calories (Speed based)
• Comparison of cur. / avg. Speed
• Automatic start/stop
• Average speed

General

• ATS transmission
• Available languages: 7
• Device Settings adjustable via DATA CENTER
• Service interval adjustable via UFSB
• Programmable based on tire selection
• Watertight in accordance with IPX8
• UFSB 2016 compatible
• Tool-free mounting
• Data communication via TOPLINE 2016 docking station
