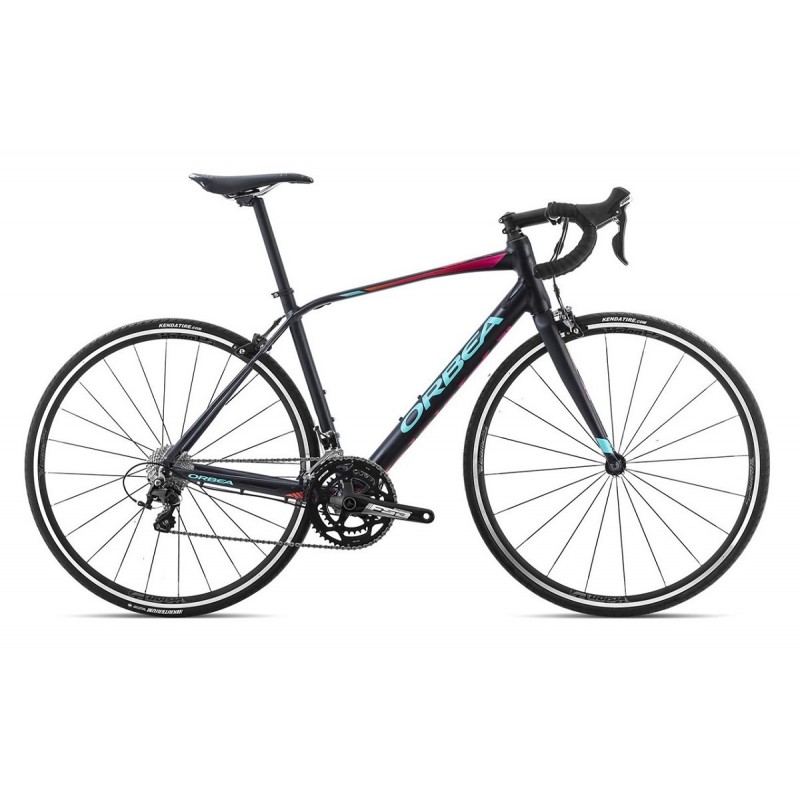

About Orbea Avant H30 Road Bike 2018 Black Pink Jade
You knew when you planned the ride it would be a long day - a route stacked with grinding climbs and twisting descents, terrible roads with a good amount of who-knows-what-else thrown in. These rides aren’t most people’s idea of fun, but they sure are memorable, monumental, challenging. Is that why you keep going? You suck down another coffee and pull on your shoe covers to hold the weather at bay, it’s going to clear out and warm up in a few hours... Probably. Grab your Avant and do a quick check before rolling into the morning mist. No other machine could better help you endure the hours of rough, exhausting conditions ahead. It’s going to be a long day - and you love it.
Key Features:
Dynamic Structure Comfort - Structure, tubing shapes and frame design are elemental to building a comfortable frame that helps reduce muscle fatigue. Avant's Dynamic Structure provides a smooth, light ride without bulky compromises like tubing inserts and elastomers. The natural flex patterns created by the carbon layup and minimal bulk of the top tube and seat stays deliver a dynamic, smooth ride that feels like floating over rough roads. The sensation is subtle - but it is noticeable and can be tested.
Efficiency - The large majority of torsional and lateral loads are handled by the lower spine of the frame. The headtube, downtube and chainstays are shaped to resist twisting and transmit power to the rear wheel. There is no doubt about it, large cross-sections and resistance to flex in the bottom of the frame translate directly to more watts on the road and a sensation that power transfer is instantaneous.
Avant Fork - The Avant fork uses a shallower, rounded-blade profile and longer fork legs to offer the best combination of elasticity, tire clearance and torsional stiffness. The increased axle-to-crown height is offset by a shorter headtube to maintain stack measurements and improve aesthetics.
Orbea Endurance Geometry - Avant Endurance Geometry is born from years of analyzing how ergonomics can help you ride further. Unlike a racing geometry that is focused on aerodynamics, endurance ergonomics result in a bike that is easier to ride and increases stamina. Handling is precise and intuitive. Angles and dimensions are considered carefully across a range of sizes to maximize rider comfort. And more comfort means longer rides.
Specifications
Frame | Orbea Avant Hydro, hydroformed triple butted aluminum, headset 1-1/8"""", BB 68mm - BSC English , internal cable routing, 130 OLD, 27,2mm seat tube. |
Forks | Avant carbon fork, aluminum steerer, 1-1/8"""" head tube. |
Headset | 1-1/8"""" Semi-Integrated Aluminium Cup |
Handlebars | Orbea OC-II |
Stem | Orbea OC-II |
Shifters | 22 Speed Shimano 105 5800 |
Front Mech | Shimano 105 5801 |
Rear Mech | Shimano 105 5800 GS |
Chainset | FSA Omega Megaexo 34x50t |
Chain | Fsa Team Issue |
Cassette | Shimano 105 5800 11-32t 11-Speed |
Front Brake | Orbea OC-II |
Rear Brake | Orbea OC-II |
Rims | Vision Team 25 Clincher |
Front Hub | Vision Team 25 Clincher |
Rear Hub | Vision Team 25 Clincher |
Tyres | Kenda Kriterium 700x25 60TPI Front - Kenda Kriterium 700x25 60TPI Rear |
Seatpost | Orbea OC-II Carbon 27.2x350mm |
Pedals | Not Included |
Geometry
BIKE SPECIFICATIONS | |
FRAME | Orbea Avant Hydro, hydroformed triple butted aluminum, headset 1-1/8", BB 68mm - BSC English , internal cable routing, 130 OLD, 27,2mm seat tube. |
FORK | Avant carbon fork, aluminum steerer, 1-1/8" head tube. |
RIMS | Vision Team 25 Clincher |
HUB REAR | Vision Team 25 Clincher |
HUB FRONT | Vision Team 25 Clincher |
TIRES | Kenda Kriterium 700x25 60TPI Front - Kenda Kriterium 700x25 60TPI Rear |
DERAILLEUR REAR | Shimano 105 5800 GS |
DERAILLEUR FRONT | Shimano 105 5801 |
SHIFT LEVER | 22 Speed Shimano 105 5800 |
CRANKSET | FSA Omega Megaexo 34x50t |
CHAIN | Fsa Team Issue |
CASSETTE | Shimano 105 5800 11-32t 11-Speed |
BRAKES FRONT | Orbea OC-II |
BRAKES REAR | Orbea OC-II |
HANDLEBAR | Orbea OC-II |
STEM | Orbea OC-II |
HEADSET | 1-1/8" Semi-Integrated Aluminium Cup |
SEATPOST | Orbea OC-II Carbon 27.2x350mm |
PEDALS | Not Included |
